Descripción

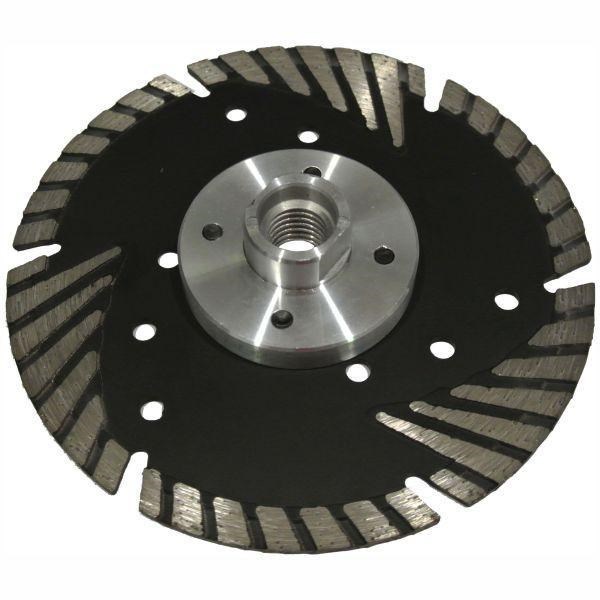

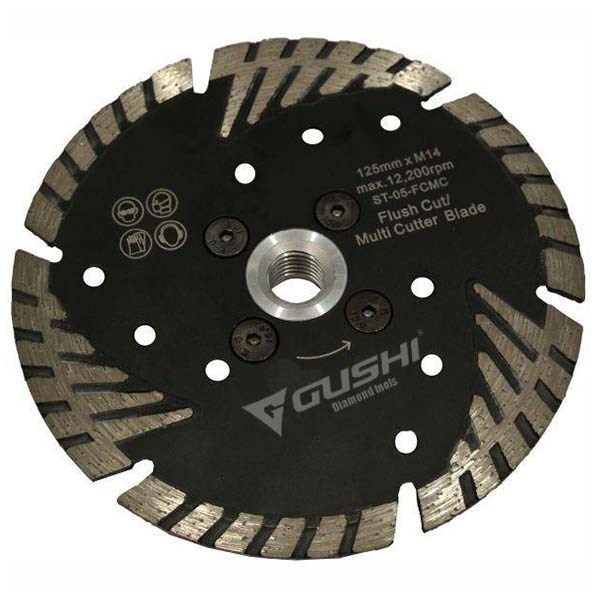

Flush cut diamond blade
Flush cut diamond vanity blades fitted with M14 threaded flanges designed to connect directly to your grinder. The flange attachment means the blade can be used tight up against a wall or other similar obstacle.
Flush cut diamond blade for cutting granite, marble, tile, brick, concrete and other masonry materials. Special segment design helps to protect core with deep cut.
| Item Number |
Diameter
(inch/mm)
|
Segment Width
(mm)
|
Segment Height
(mm)
|
Arbor Hole
(mm)
|
| 4HMG | 4”/100 | 2.0 | 5/7/8/10 | 16/20/22.23 |
| 4.5HMG | 4.5”/115 | 2.0 | 5/7/8/10 | 16/20/22.23 |
| 5HMG | 5”/125 | 2.2 | 5/7/8/10 | 20.0/22.23 |
| 6HMG | 6”/150 | 2.4 | 5/7/8/10 | 20.0/22.23 |
| 7HMG | 7”/180 | 2.4 | 5/7/8/10 | 22.23/25.4 |
| 8HMG | 8”/200 | 2.4 | 5/7/8/10 | 22.23/25.4 |
| 9HMG | 9”/230 | 2.6 | 5/7/8/10 | 22.23/25.4 |
| 10HMG | 10”/250 | 2.6 | 5/7/8/10 | 22.23/25.4 |
| 12HMG | 12”/300 | 3.0 | 5/7/8/10 | 22.23/25.4 |
| 14HMG | 14”/350 | 3.0 | 5/7/8/10 | 22.23/25.4 |
